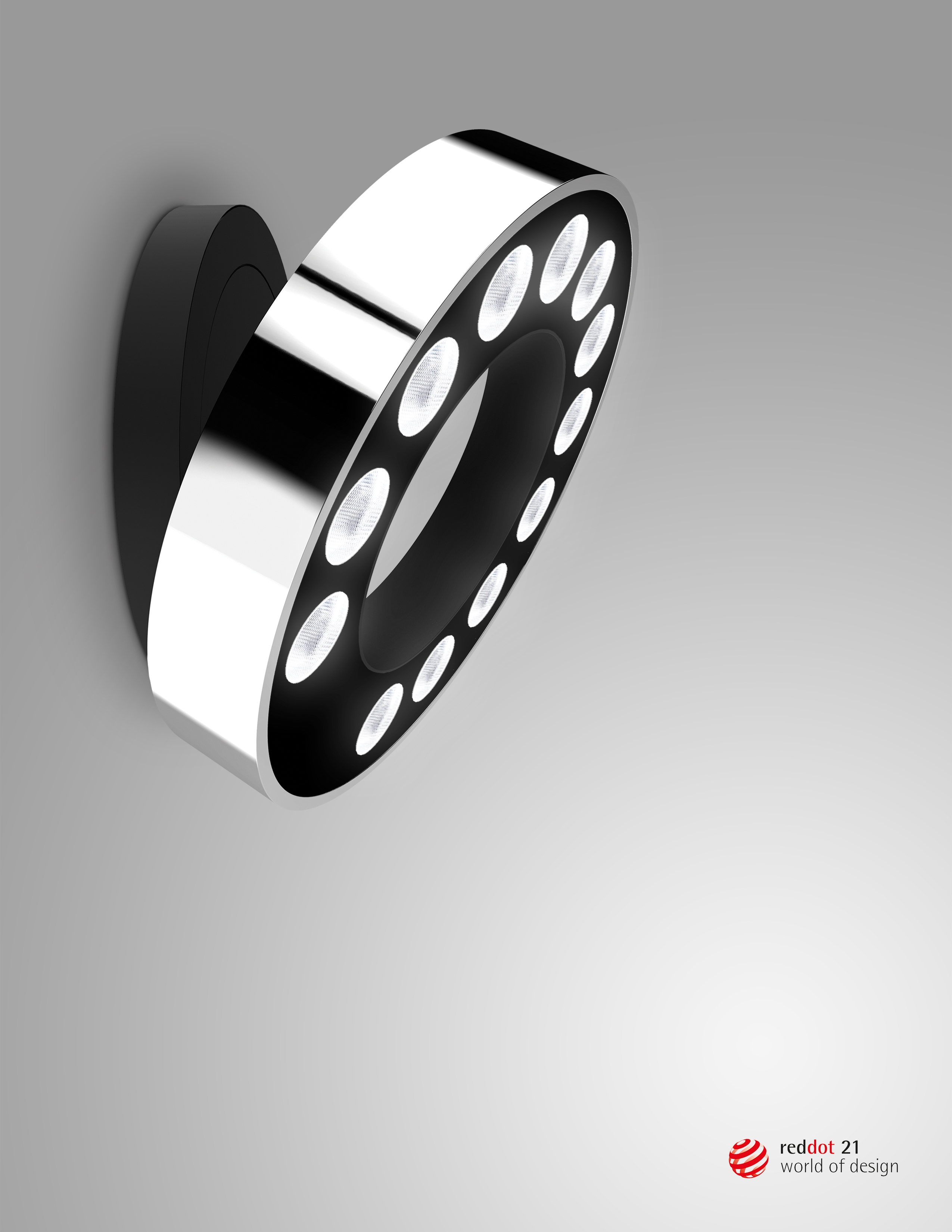

DIAL


Product Characteristics: DESIGN:

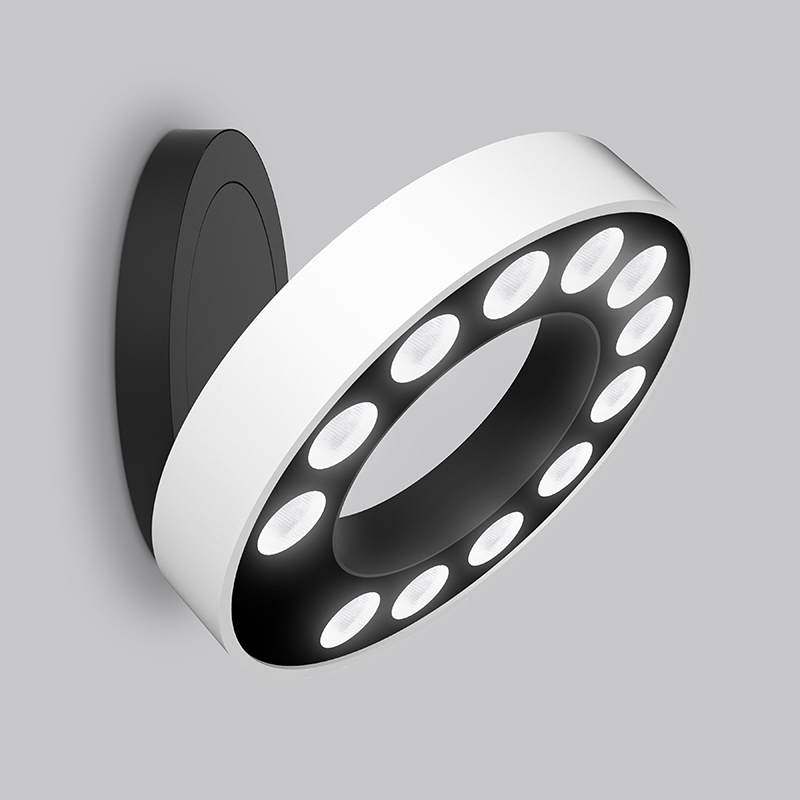

Dial combines a contemporary shape and innovative design with high-performance LED technology. The ultra-thin structure features a hidden rotational mechanism and a clever magnetically locking friction hinge system. Whether you install the Dial on a wall or ceiling, its design will never go unnoticed.

INSTALLATION:

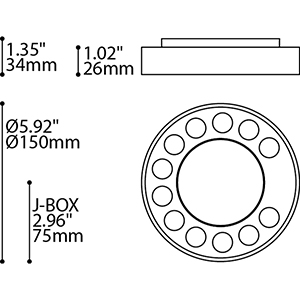

Effortless installation by means of two screws fastened to a deep junction box (3983) included with product. Designed with a rotating canopy (350°) and high quality friction hinge (angle up to 60°), Dial can stay into the flat position via an invisible magnetic system. No visible fasteners.

LIGHT SOURCE:
12W and 18W LED with included standard dimming types 0-10v or phase.

STRUCTURE:

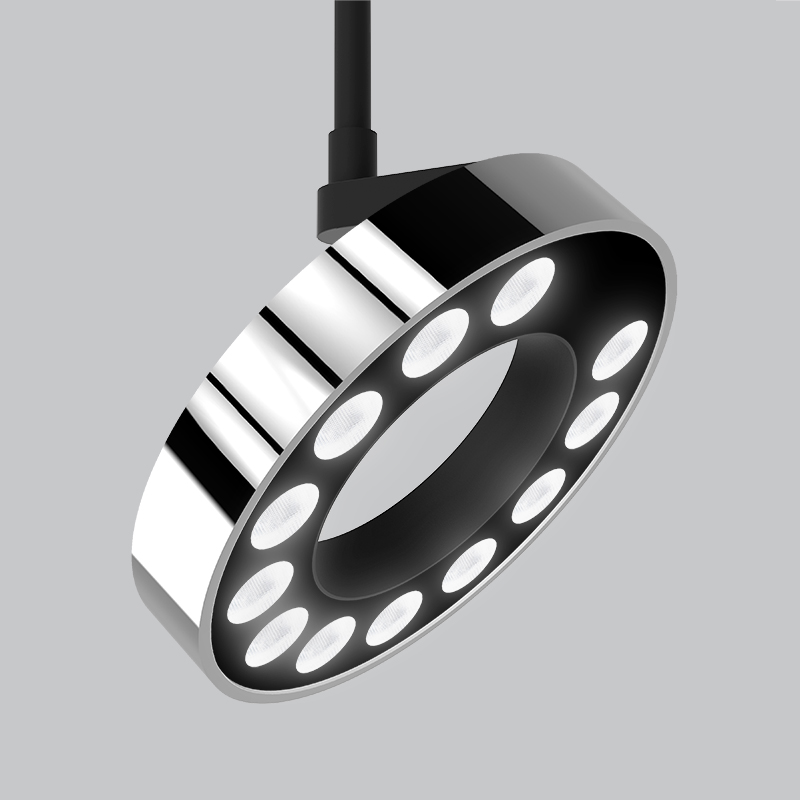

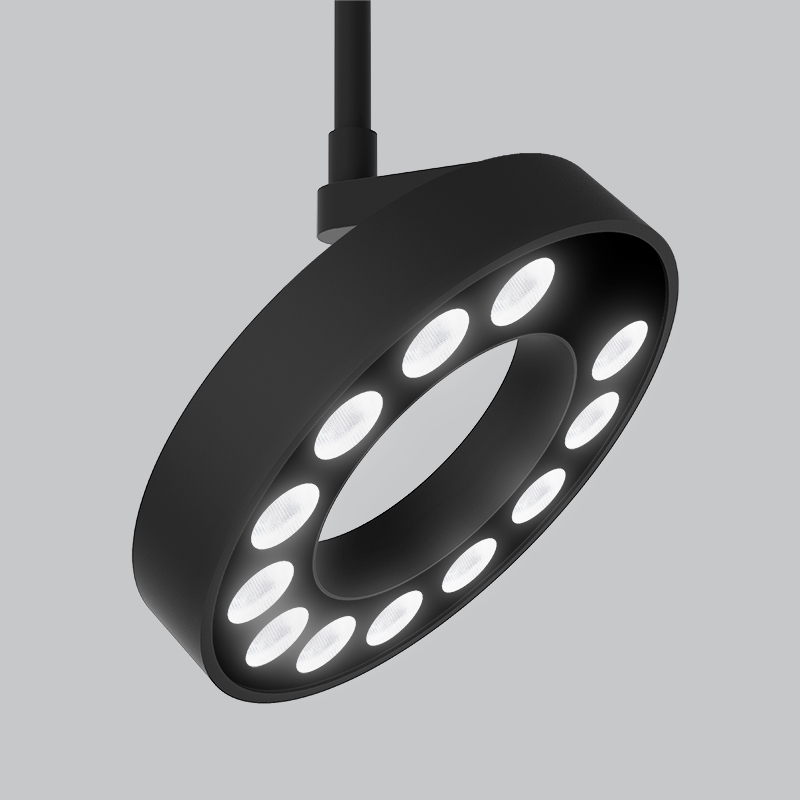

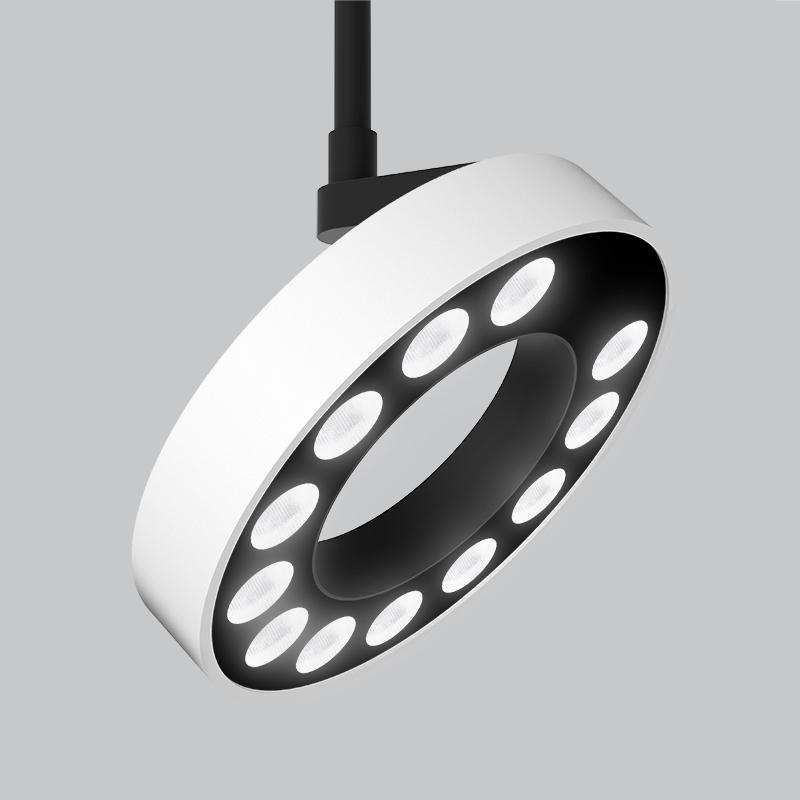

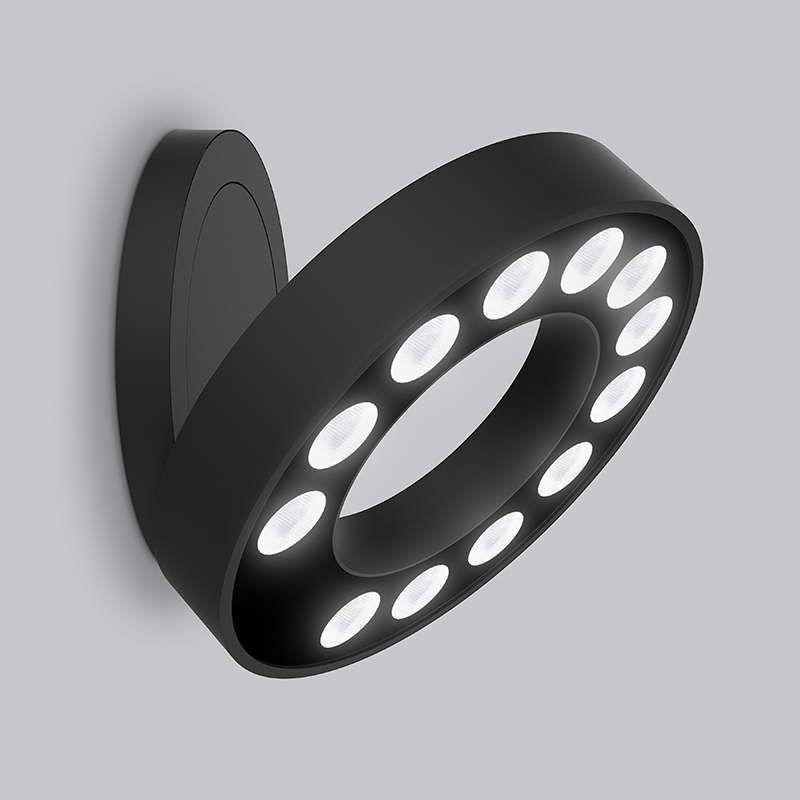

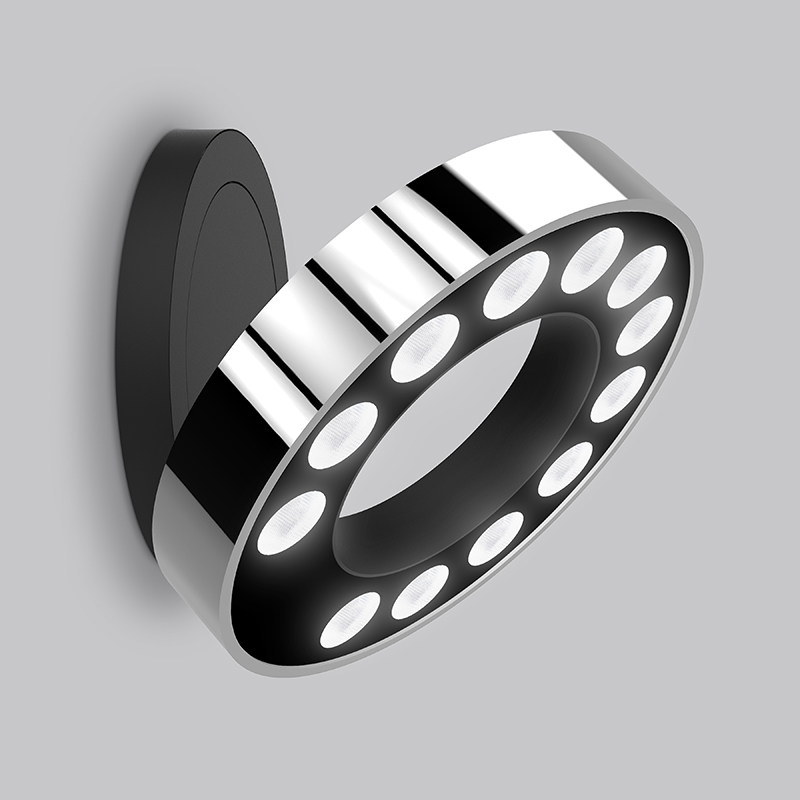

Aluminum structure and a custom die-cast heat sink with black fine textured finish. CNC machined aluminum frame available in chrome, white or black architectural grade fine textured finishes.

OPTIC:
Multiple TIR, available with narrow (18° FWHM) or wide (44° FWHM) beam. Tempered glass masked with black silkscreen printing isolates the optics to improve performance.
Rotation Angle: 350°
Adjustment Angle: 60°
Structure Finish BLKE
Shade Finish: BLKE | CHR | WHE
Available Light Sources
LED.12.30.18.DP
12W, LED 3000K (Warm), 18° (Beam angle) PHASE DIMMING 120V
LED.12.30.18.DV
12W, LED 3000K (Warm), 18° (Beam angle) 0-10V DIMMING 120-277V
LED.30.44.DP
12W, LED 3000K (Warm), 44° (Beam angle) PHASE DIMMING 120V
LED.12.30.44.DV
12W, LED 3000K (Warm), 44° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.18.DP
18W, LED 3000K (Warm), 18° (Beam angle) PHASE DIMMING 120V
LED.18.30.18.DV
18W, LED 3000K (Warm), 18° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.44.DP
18W, LED 3000K (Warm), 44° (Beam angle) PHASE DIMMING 120V
LED.18.30.44.DV
18W, LED 3000K (Warm), 44° (Beam angle) 0-10V DIMMING 120-277V
LED.12.35.18.DP
12W, LED 3500K (Natural), 18° (Beam angle) PHASE DIMMING 120V
LED.12.35.18.DV
12W, LED 3500K (Natural), 18° (Beam angle) 0-10V DIMMING 120-277V
LED.35.44.DP
12W, LED 3500K (Natural), 44° (Beam angle) PHASE DIMMING 120V
LED.12.35.44.DV
12W, LED 3500K (Natural), 44° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.18.DP
18W, LED 3500K (Natural), 18° (Beam angle) PHASE DIMMING 120V
LED.18.35.18.DV
18W, LED 3500K (Natural), 18° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.44.DP
18W, LED 3500K (Natural), 44° (Beam angle) PHASE DIMMING 120V
LED.18.35.44.DV
18W, LED 3500K (Natural), 44° (Beam angle) 0-10V DIMMING 120-277V
LED.12.40.18.DP
12W, LED 4000K (Neutral), 18° (Beam angle) PHASE DIMMING 120V
LED.12.40.18.DV
12W, LED 4000K (Neutral), 18° (Beam angle) 0-10V DIMMING 120-277V
LED.12.40.44.DP
12W, LED 4000K (Neutral), 44° (Beam angle) PHASE DIMMING 120V
LED.12.40.44.DV
12W, LED 4000K (Neutral), 44° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.18.DP
18W, LED 4000K (Neutral), 18° (Beam angle) PHASE DIMMING 120V
LED.18.40.18.DV
18W, LED 4000K (Neutral), 18° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.44.DP
18W, LED 4000K (Neutral), 44° (Beam angle) PHASE DIMMING 120V
LED.18.40.44.DV
18W, LED 4000K (Neutral), 44° (Beam angle) 0-10V DIMMING 120-277V

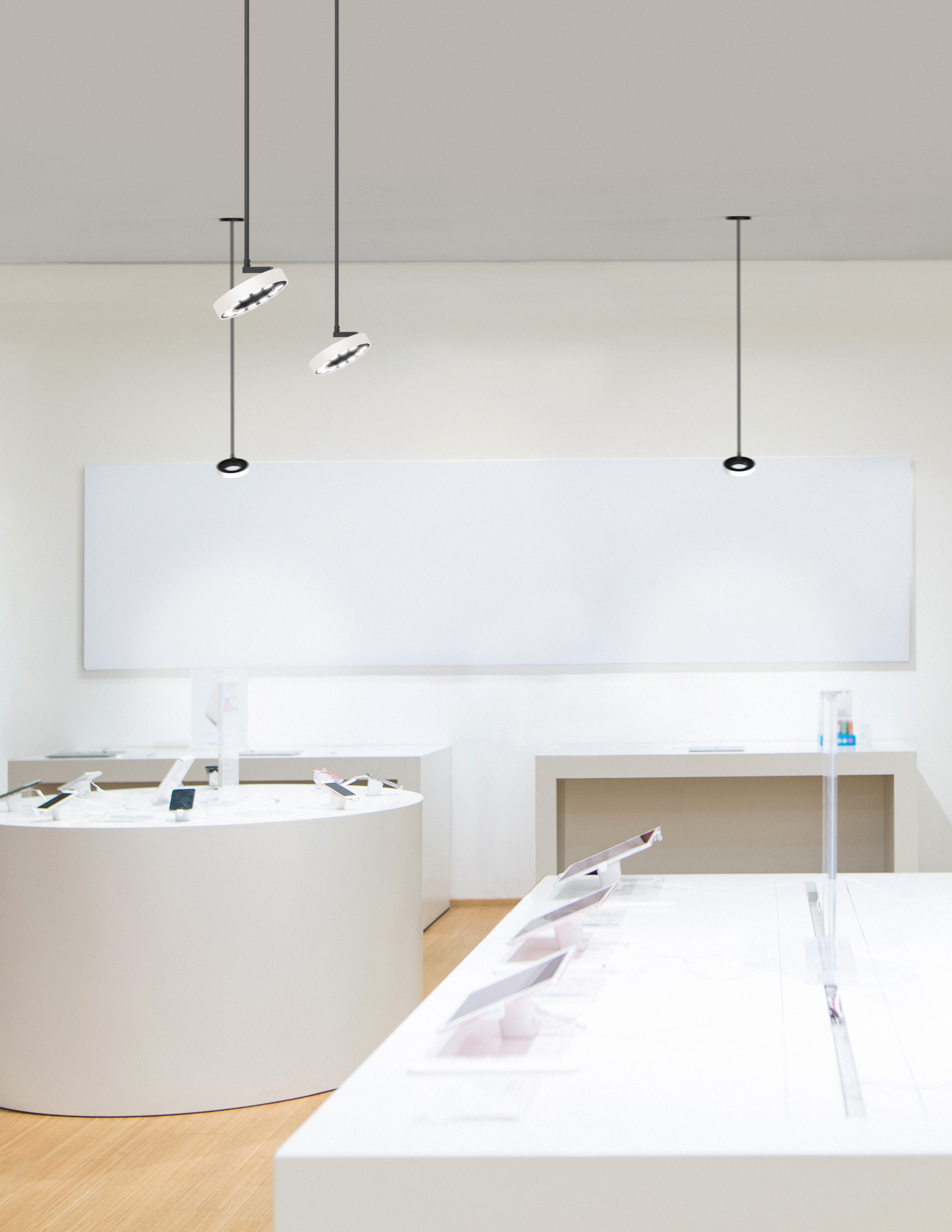

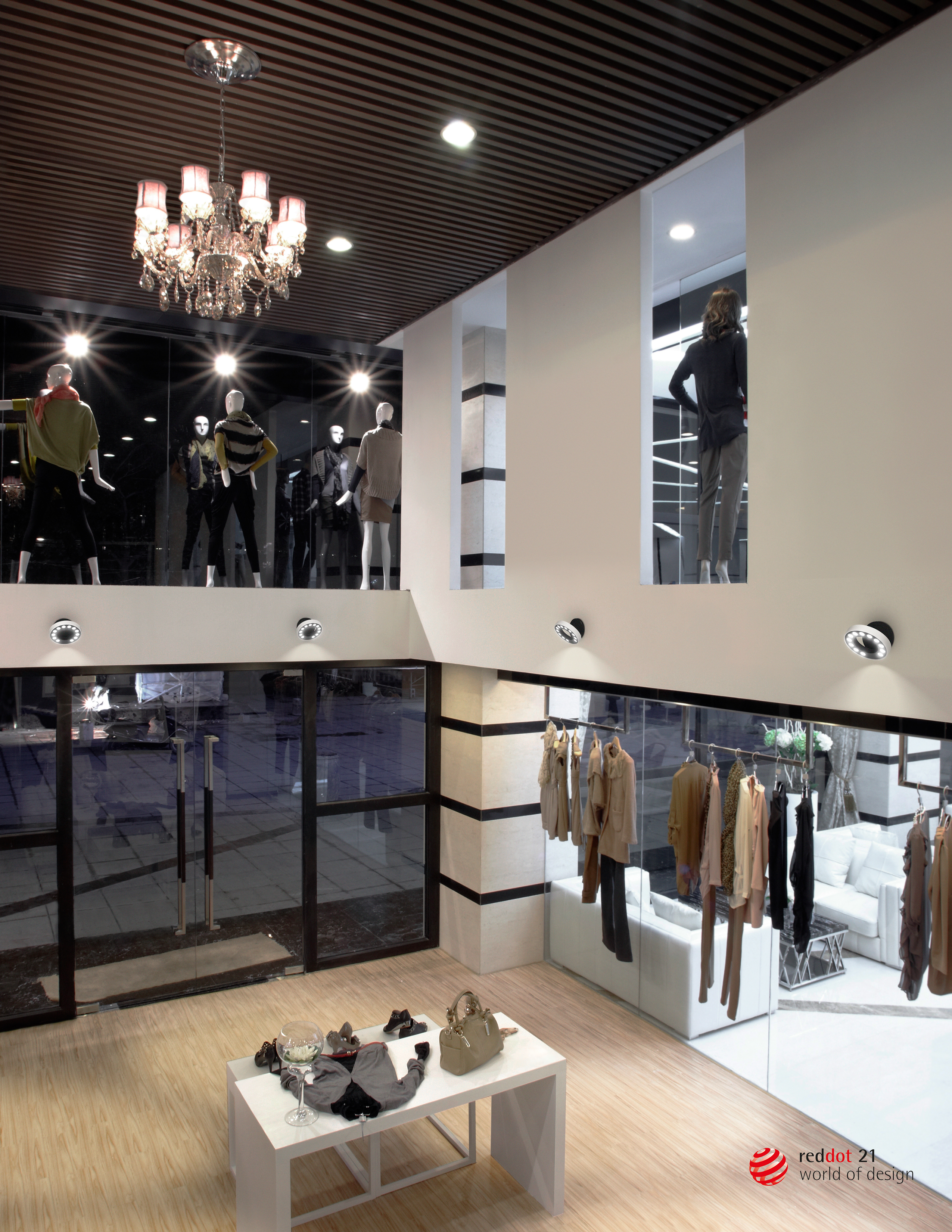

Application Photos
