POINT
Track Heads 2044
Product Companion
POINT
Track Heads
Product Characteristics:
DESIGN:
Already popular in 8W, we just made the clean and austere Point projector better by offering two new intensities. We have not changed the look or awesome thermal management design, but we have upgraded it to accommodate the new high intensity light engine which provides up to 1615 delivered lumens (18W – 40° optic).
INSTALLATION:

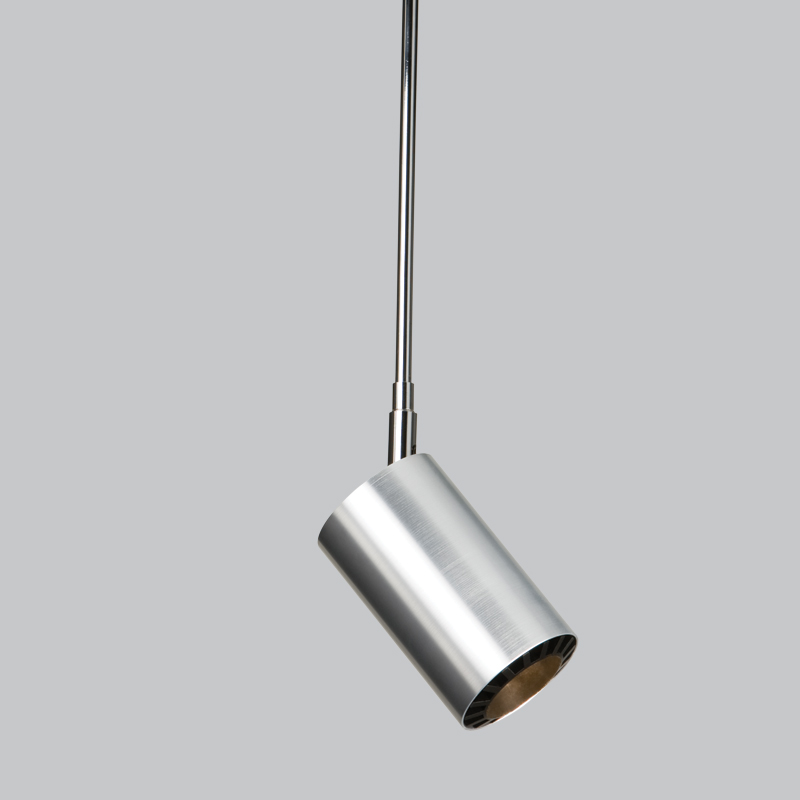

Available on canopy or track mount adaptor, the suspended version of Point is mounted on a non-field adjustable 10 mm stem. Projector features a high performance spring tension swivel.
LIGHT SOURCE:
8W, 11W and 18W LED, with 0-10v (DV) or Phase (DP) dimming versions available.
STRUCTURE:
CNC machined aluminum housing with black or clear satin anodized finish. Die-cast aluminum heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
OPTIC:
17° or 48° Beam Angle Total Internal Reflecting (TIR) Multi-lens (8W LED version). 20° or 40° beam angles total internal reflexion (TIR) for 11 and 18W LED version.
Rotation Angle: 350°
Adjustment Angle: 60°
Finish CHR
Shade Finish: BLKA | S A | WHE
Already popular in 8W, we just made the clean and austere Point projector better by offering two new intensities. We have not changed the look or awesome thermal management design, but we have upgraded it to accommodate the new high intensity light engine which provides up to 1615 delivered lumens (18W – 40° optic).
INSTALLATION:
Available on canopy or track mount adaptor, the suspended version of Point is mounted on a non-field adjustable 10 mm stem. Projector features a high performance spring tension swivel.
LIGHT SOURCE:
8W, 11W and 18W LED, with 0-10v (DV) or Phase (DP) dimming versions available.
STRUCTURE:
CNC machined aluminum housing with black or clear satin anodized finish. Die-cast aluminum heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
OPTIC:
17° or 48° Beam Angle Total Internal Reflecting (TIR) Multi-lens (8W LED version). 20° or 40° beam angles total internal reflexion (TIR) for 11 and 18W LED version.
Rotation Angle: 350°
Adjustment Angle: 60°
Finish CHR
Shade Finish: BLKA | S A | WHE
Available Light Sources
LED.11.30.20.DP
11W, LED 3000K (Warm), 20° (Beam angle) PHASE DIMMING 120V
LED.11.30.20.DV
11W, LED 3000K (Warm), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.11.30.40.DP
11W, LED 3000K (Warm), 40° (Beam angle) PHASE DIMMING 120V
LED.11.30.40.DV
11W, LED 3000K (Warm), 40° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.20.DP
18W, LED 3000K (Warm), 20° (Beam angle) PHASE DIMMING 120V
LED.18.30.20.DV
18W, LED 3000K (Warm), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.18.30.40.DP
18W, LED 3000K (Warm), 40° (Beam angle) PHASE DIMMING 120V
LED.18.30.40.DV
18W, LED 3000K (Warm), 40° (Beam angle) 0-10V DIMMING 120-277V
LED.8.30.17
8W, LED 3000K (Warm), 17° (Beam angle) 120V
LED.8.30.48
8W, LED 3000K (Warm), 48° (Beam angle) 120V
LED.11.35.20.DP
11W, LED 3500K (Natural), 20° (Beam angle) PHASE DIMMING 120V
LED.11.35.20.DV
11W, LED 3500K (Natural), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.11.35.40.DP
11W, LED 3500K (Natural), 40° (Beam angle) PHASE DIMMING 120V
LED.11.35.40.DV
11W, LED 3500K (Natural), 40° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.20.DP
18W, LED 3500K (Natural), 20° (Beam angle) PHASE DIMMING 120V
LED.18.35.20.DV
18W, LED 3500K (Natural), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.18.35.40.DP
18W, LED 3500K (Natural), 40° (Beam angle) PHASE DIMMING 120V
LED.18.35.40.DV
18W, LED 3500K (Natural), 40° (Beam angle) 0-10V DIMMING 120-277V
LED.8.35.17
8W, LED 3500K Natural), 17° (Beam angle) 120V
LED.8.35.48
8W, LED 3500K (Natural), 48° (Beam angle) 120V
LED.18.40.20.DP
18W, LED 4000K (Neutral), 20° (Beam angle) PHASE DIMMING 120V
LED.18.40.20.DV
18W, LED 4000K (Neutral), 20° (Beam angle) 0-10V DIMMING 120-277V
LED.18.40.40.DP
18W, LED 4000K (Neutral), 40° (Beam angle) PHASE DIMMING 120V
LED.18.40.40.DV
18W, LED 4000K (Neutral), 40° (Beam angle) 0-10V DIMMING 120-277V
LED.8.40.17
8W, LED 4000K (Neutral), 17° (Beam angle) 120V
LED.8.40.48
8W, LED 4000K (Neutral), 48° (Beam angle) 120V
