Expo


Product Characteristics: DESIGN:

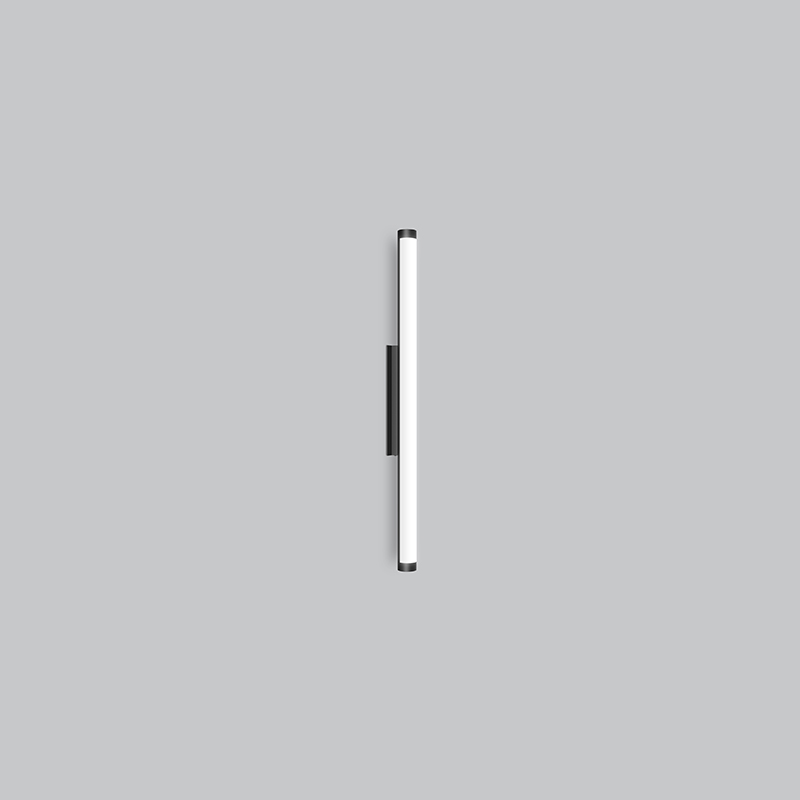

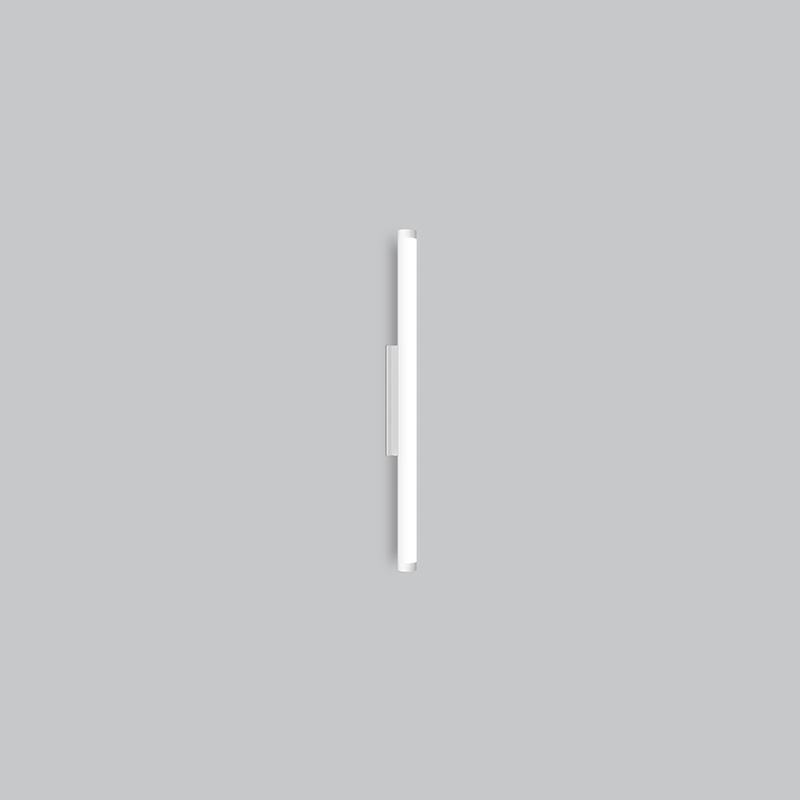

A thin yet sturdy tube, evenly lit over its entire diameter, apart from its subtle aluminium top. The concave endcap reveals a delicate curvature when light is shined on it. Used as a ceiling or wall mount, Expo can illuminate anything from a narrow hallway to a spacious space. Available in 3 lengths (24", 36", 48"), Expo is also ADA compliant.

INSTALLATION:
Expo can be mounted on a ceiling or wall, in a vertical, horizontal or even angled position, without any visible fasteners. Two mounting plates are available: slim plate (SL - 2.0") mounted on our slim junction box (3980B - included) and wide plate (WI - 4.25") mounted on a deep junction box (3983 - include). The supplied ball-end bit allows for a simple installation.

LIGHT SOURCE:
A custom linear LED module with an impressive efficiency creates a uniform illumination. Expo is available in low (LED.LO), regular (LED), high (LED.HO) and super high output (LED.SH). Many control options available.

CONSTRUCTION:

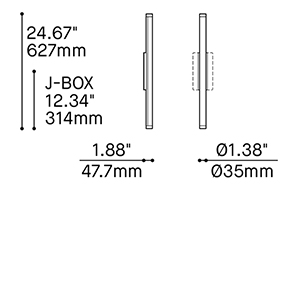

Expo’s sleek and thin profile measures 1⅜" in diameter. It’s custom die cast endcap and extruded heatsink are made of aluminum offered in a black or white fine textured finish.

DIFFUSER:
The custom extruded PMMA diffuser lit evenly over 235°, creates a Lambertian light distribution. Finish BLKE | WHE
nLight Enabled
nLight® Air Enabled
Available Light Sources
LED.HO
12W, LED HO
LED.LO
4W, LED LO
LED
7W, LED
LED.SHO
16W, LED SHO

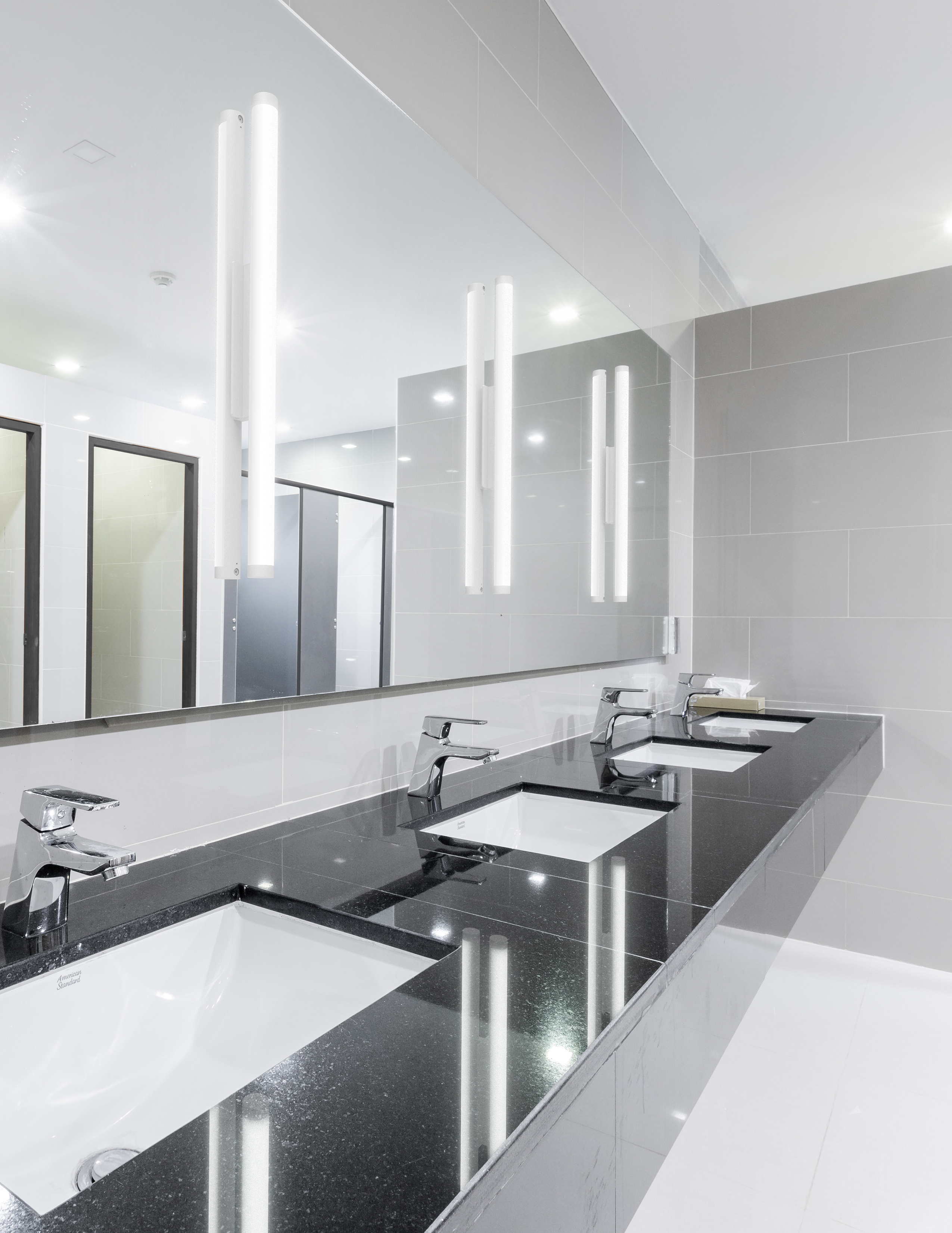

Application Photos
