Nano
Ceiling Surface 2033
Product Companion
Nano
Ceiling Surface
Product Characteristics:
DESIGN:

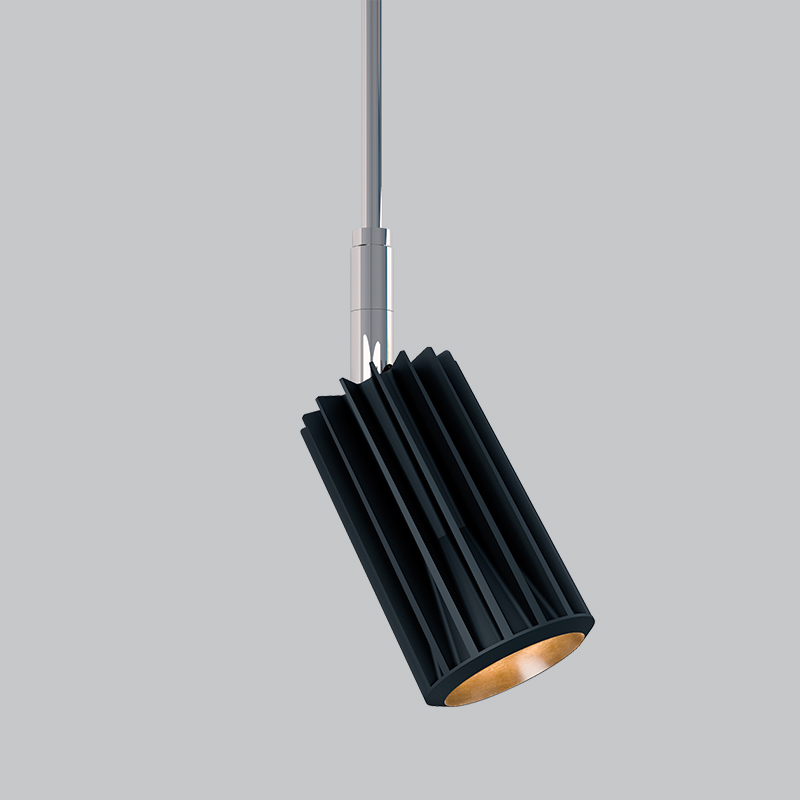

Slightly longer than Pico, Nano has the same dark black technical design that performs as well as it looks. The exposed heat sink enhances the already impressive LED performance in a compact form.
LIGHT SOURCE:
4W and 8W LED with 0-10V (DV) or phase (DP) dimming versions available.
OPTIC:
17° or 48° Beam Angle Total Internal Reflecting (TIR) Multi-lens.
STRUCTURE:
Die-cast aluminium heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
INSTALLATION:
Available on canopy or track mount adaptor, the suspended version of Nano is mounted on a field adjustable 6mm stem. Projector feature a high performance spring tension swivel. Rotation Angle: 350°
Adjustment Angle: 60°
Finish CHR
Slightly longer than Pico, Nano has the same dark black technical design that performs as well as it looks. The exposed heat sink enhances the already impressive LED performance in a compact form.
LIGHT SOURCE:
4W and 8W LED with 0-10V (DV) or phase (DP) dimming versions available.
OPTIC:
17° or 48° Beam Angle Total Internal Reflecting (TIR) Multi-lens.
STRUCTURE:
Die-cast aluminium heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
INSTALLATION:
Available on canopy or track mount adaptor, the suspended version of Nano is mounted on a field adjustable 6mm stem. Projector feature a high performance spring tension swivel. Rotation Angle: 350°
Adjustment Angle: 60°
Finish CHR
Available Light Sources
LED.4.30.17
4W, LED 3000K (Warm), 17° (Beam angle) 120-277V
LED.4.30.48
4W, LED 3000K (Warm), 48° (Beam angle) 120-277V
LED.8.30.17
8W, LED 3000K (Warm), 17° (Beam angle) 120V
LED.8.30.48
8W, LED 3000K (Warm), 48° (Beam angle) 120V
LED.4.35.17
4W, LED 3500K (Natural), 17° (Beam angle) 120-277V
LED.4.35.48
4W, LED 3500K (Natural), 48° (Beam angle) 120-277V
LED.8.35.17
8W, LED 3500K Natural), 17° (Beam angle) 120V
LED.8.35.48
8W, LED 3500K (Natural), 48° (Beam angle) 120V
LED.4.40.17
4W, LED 4000K (Neutral), 17° (Beam angle) 120-277V
LED.4.40.48
4W, LED 4000K (Neutral), 48° (Beam angle) 120-277V
LED.8.40.17
8W, LED 4000K (Neutral), 17° (Beam angle) 120V
LED.8.40.48
8W, LED 4000K (Neutral), 48° (Beam angle) 120V
