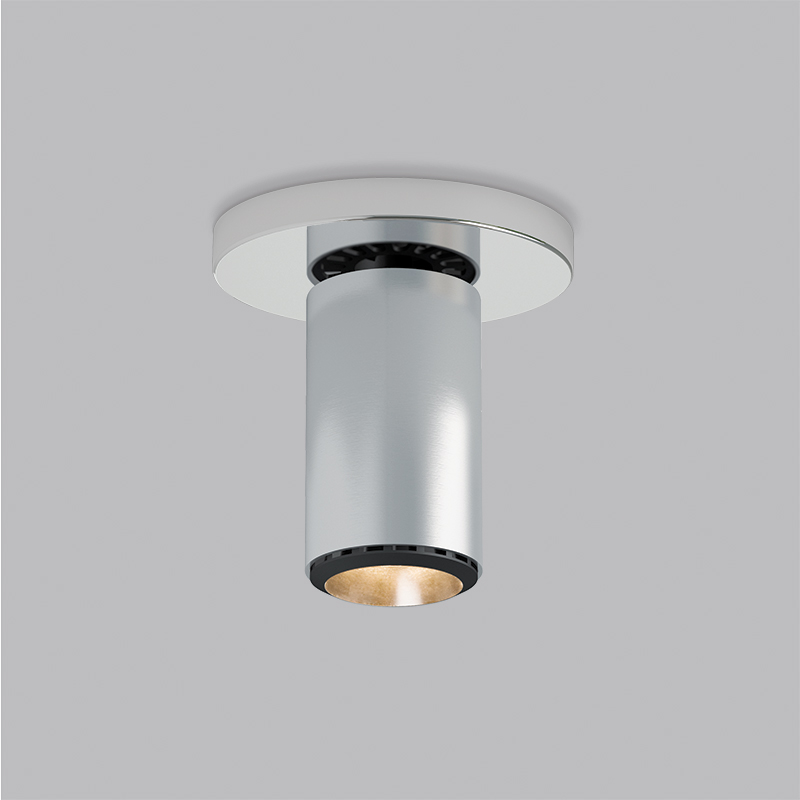

Voxel
Ceiling Surface 4564
Product Companion
Voxel
Ceiling Surface
Product Characteristics:
DESIGN:
Same beautiful proportions and clean look of the Point, Voxel and Pixel are smaller sized minimalist projectors. The cleverly integrated heat sink provides a beautiful front edge
detail and allows for incredible LED performance in a mini-projector.
INSTALLATION:
Both Pixel and Voxel float on a round chrome ceiling mounted canopy and are supplied without swivel.
LIGHT SOURCE:
4W and 8W LED with 0-10V (DV) or phase (DP) dimming versions available.
STRUCTURE:
CNC machined aluminum housing with black, white or clear satin finish. Die-cast aluminum heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
OPTIC:
17° or 48° beam angle total internal reflecting (TIR) multi-lens. Finish CHR
Shade Finish: BLKA | S A | WHE
Same beautiful proportions and clean look of the Point, Voxel and Pixel are smaller sized minimalist projectors. The cleverly integrated heat sink provides a beautiful front edge
detail and allows for incredible LED performance in a mini-projector.
INSTALLATION:
Both Pixel and Voxel float on a round chrome ceiling mounted canopy and are supplied without swivel.
LIGHT SOURCE:
4W and 8W LED with 0-10V (DV) or phase (DP) dimming versions available.
STRUCTURE:
CNC machined aluminum housing with black, white or clear satin finish. Die-cast aluminum heat sink with black satin anodized finish and inner die-formed steel parts with black polyester powder finish.
OPTIC:
17° or 48° beam angle total internal reflecting (TIR) multi-lens. Finish CHR
Shade Finish: BLKA | S A | WHE
Available Light Sources
LED.4.30.17
4W, LED 3000K (Warm), 17° (Beam angle) 120-277V
LED.4.30.48
4W, LED 3000K (Warm), 48° (Beam angle) 120-277V
LED.8.30.17
8W, LED 3000K (Warm), 17° (Beam angle) 120V
LED.8.30.48
8W, LED 3000K (Warm), 48° (Beam angle) 120V
LED.4.35.17
4W, LED 3500K (Natural), 17° (Beam angle) 120-277V
LED.4.35.48
4W, LED 3500K (Natural), 48° (Beam angle) 120-277V
LED.8.35.17
8W, LED 3500K Natural), 17° (Beam angle) 120V
LED.8.35.48
8W, LED 3500K (Natural), 48° (Beam angle) 120V
LED.4.40.17
4W, LED 4000K (Neutral), 17° (Beam angle) 120-277V
LED.4.40.48
4W, LED 4000K (Neutral), 48° (Beam angle) 120-277V
LED.8.40.17
8W, LED 4000K (Neutral), 17° (Beam angle) 120V
LED.8.40.48
8W, LED 4000K (Neutral), 48° (Beam angle) 120V
